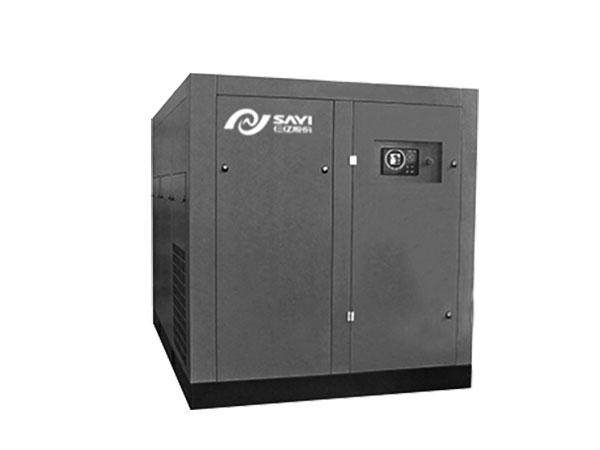

| Y series single class work frequency screw air compressor | |||||||
| model | power (KW) | pressure(bar) | capacity (m3/min) | startup mode | outlet size | dimension(LxWxH)mm | weight (kg) |
| YPF8-8 | 7.5 | 8 | 1.05 | starting | G3/4 | 750x720x945 | 230 |
| YLF8-8 | 7.5 | 8 | 1.05 | starting | Rp3/4 | 930x624x934 | 245 |
| YLF11-8 | 11 | 8 | 1.7 | starting | Rp3/4 | 1080x695x1005 | 300 |
| YLF15-8 | 15 | 8 | 2.2 | Star Triangle Start（Y-△ Starting） | Rp3/4 | 1080x695x1005 | 315 |
| YLF19-8 | 18.5 | 8 | 2.7 | Star Triangle Start（Y-△ Starting） | Rp1 | 1250x820x1150 | 450 |
| YLF22-8 | 22 | 8 | 3.3 | Star Triangle Start（Y-△ Starting） | Rp1 | 1250x820x1150 | 470 |
| YLF30-8 | 30 | 8 | 5 | Star Triangle Start（Y-△ Starting） | Rp1 1/4 | 1380x1030x1460 | 720 |
| YLF37-8 | 37 | 8 | 6.05 | Star Triangle Start（Y-△ Starting） | Rp1 1/4 | 1380x1030x1460 | 780 |
| YLF45-8 | 45 | 8 | 7.5 | Star Triangle Start（Y-△ Starting） | G1 1/2 | 1500x1150x1675 | 1100 |
| YLF55-8 | 55 | 8 | 9.25 | Star Triangle Start（Y-△ Starting） | G1 1/2 | 1500x1150x1675 | 1400 |
