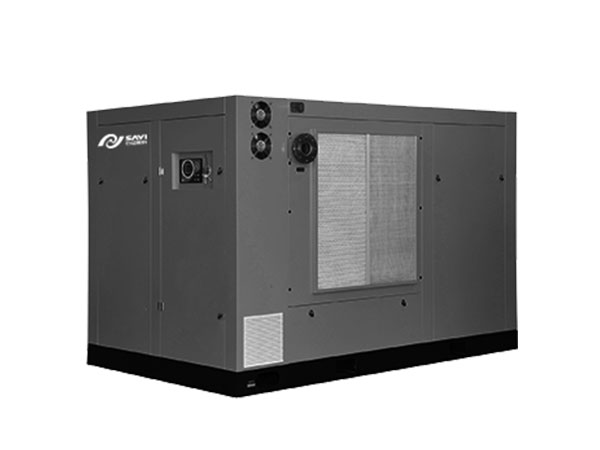

Double screw two stage energy saving middle pressure screw air compressor

Product parameter

Double screw two class energy saving middle pressure screw air compressor
power(KW) pressure(bar) capacity(m3/min) Configure Speed(rpm) Cooling Mode dimension(LxWxH)mm weight (kg)
55 15 6.6 Permanent Magnet Frequency 1500 Air Cooling 2500x1600x1740 2200
17 6.3
20 6
75 15 8.4 Permanent Magnet Frequency 1500 Air Cooling 2500x1600x1740 2300
17 8
20 7.6
90 15 9.1 Permanent Magnet Frequency 1500 Air Cooling 2850x1800x1912 3200
17 9
20 8.9
110 15 11.1 Permanent Magnet Frequency 1500 Air Cooling 2850x1800x1912 3300
17 10.9
20 10.8
132 15 14.9 Permanent Magnet Frequency 1500 Air Cooling 3440x2000x2320 4100
17 14.7
20 14.5
160 15 18.5 Permanent Magnet Frequency 1500 Air Cooling 3440x2000x2320 4200
17 18.3
20 18.1
185 15 22.3 Permanent Magnet Frequency 1500 Air Cooling 3720x2363x2382 7000
17 22.1
20 21.8
200 15 23.1 Permanent Magnet Frequency 1500 Air Cooling 3720x2363x2382 7100
17 22.8
20 22.5
220 15 26.6 Permanent Magnet Frequency 1500 Air Cooling 4400x2350x2430 8000
17 26.2
20 25.9
250 15 29.9 Permanent Magnet Frequency 1500 Air Cooling 4400x2350x2430 8100
17 29.6
20 29.1
280 15 30.4 Permanent Magnet Frequency 1500 Air Cooling 4400x2350x2430 8200
17 30.2
20 29.9
315 15 34.3 Permanent Magnet Frequency 1500 Air Cooling 4400x2350x2430 8300
17 34
20 33.7
Next:Double screw three stage energy saving middle pressure screw air compressor
